The WiPC-100 can be networked to the WiLC-100 as well as another WiPC-100s through EZN (Extended Zigbee Network) and is an electronic heat-tracing control unit featuring the benefits of distributed control and the capability for central monitoring. The WiPC-100 can be used for single phase circuit up to 30A and measures temperatures with 3-wire 100-ohm platinum RTD, voltages and currents.

• •Transfers data of temperatures, voltages and currents to WiLC-100
• •Individual electronic thermostat function
• •On / Off control of heating cable
• •Connected to RTD directly
• •Self-diagnosis function ensures system integrity

The WiLC-100 can be networked to the WiMC-100 as well as another WiLC-100s through EZN (Extended Zigbee Network) and offers an electronic controller that has an LCD color touch screen display. The WiLC-100 monitors ground-fault, temperature, voltage, current and provides an easy user interface for programming.

• •Up to 30 / 60 circuits
• •Offers trouble shooting and alarm function
• •Intuitive LCD color touch screen display design of heat tracing circuits status
• •Easy programming

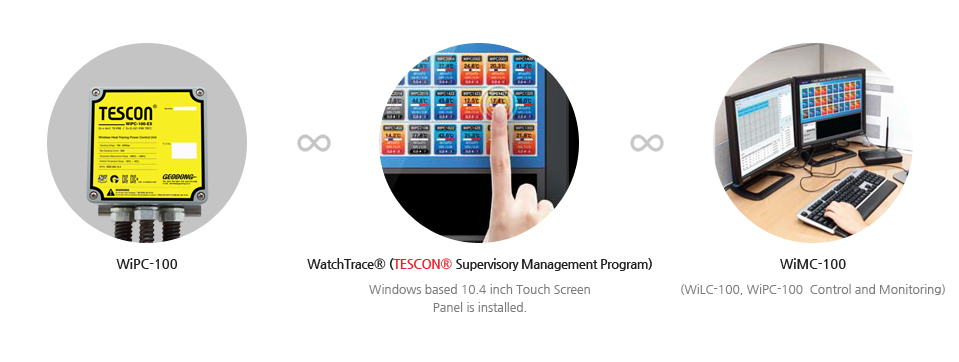

The WiMC-100 can be networked to the WiLC-100s through EZN (Extended Zigbee Network) as well as monitors and controls the whole circuits in the plant. The WiMC-100 provides the WatchTrace, PC running Windows^® based TESCON Supervisory Software for central programming. The WatchTrace offers central monitoring and control and power consumption check.

• •Up to 4,000 circuits or more
• •Central monitoring and control
• •Offers trouble shooting and alarm fuction
• •Power consumption check available
• •Offers Database and WiPC-100/WiLC-100 location map (optional)
